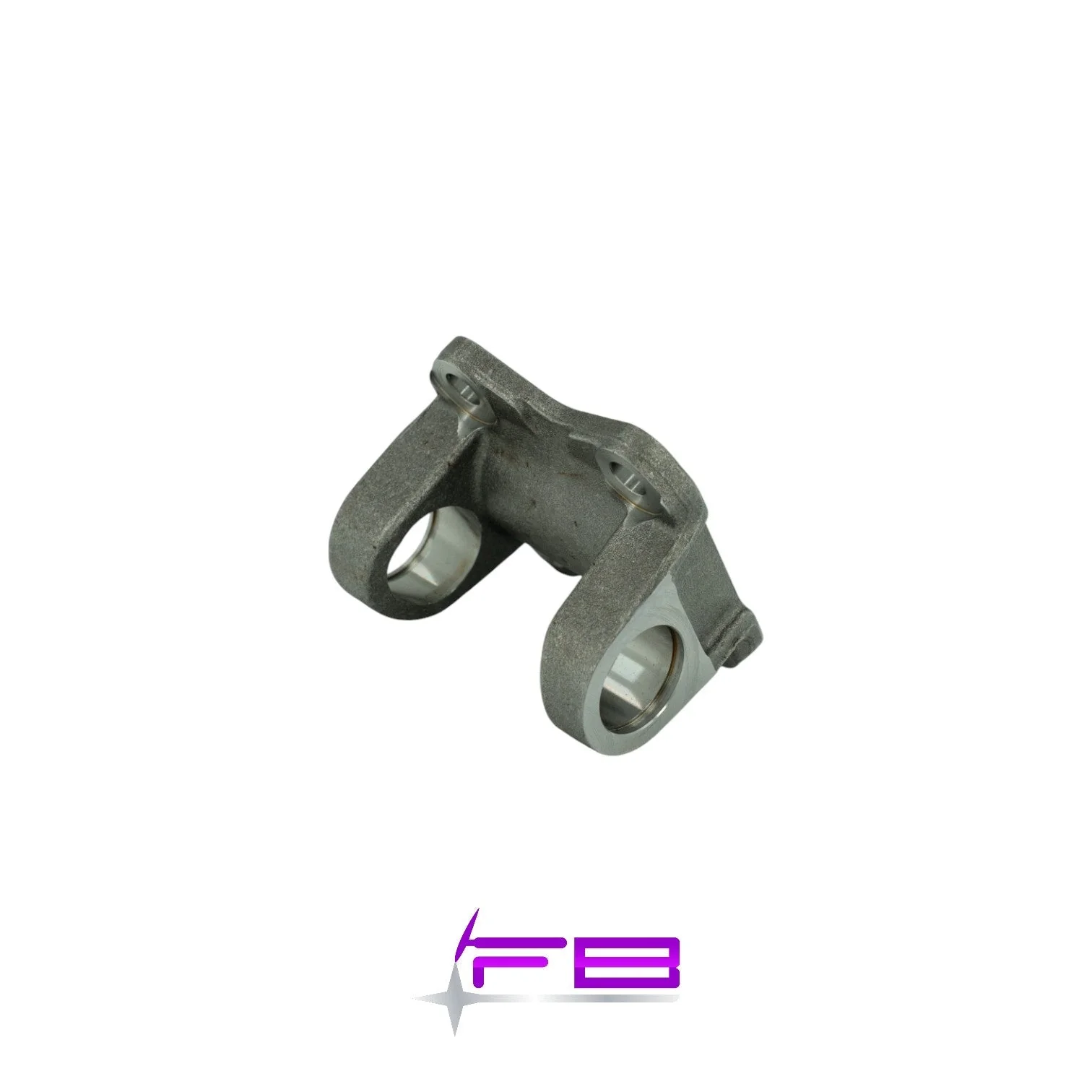

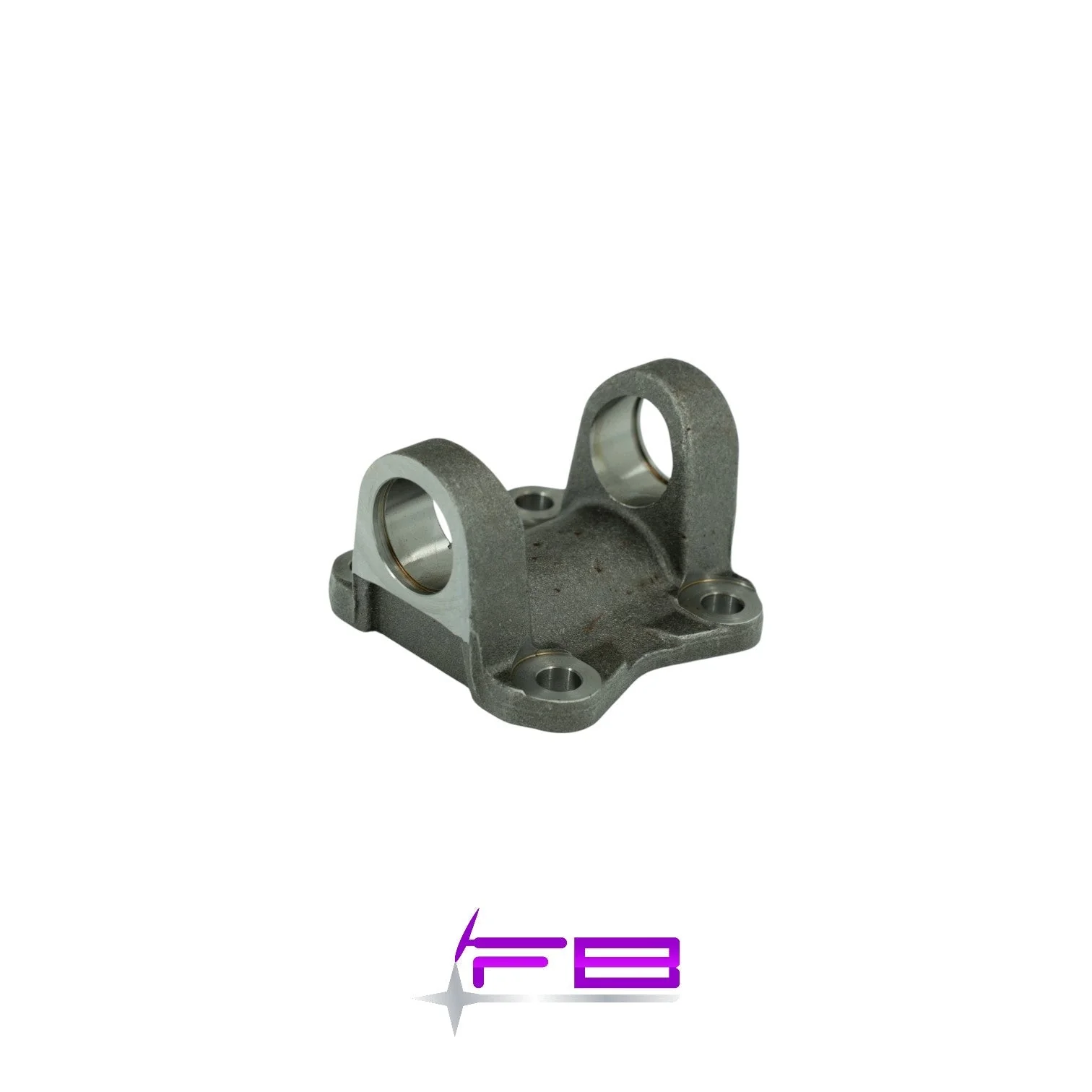

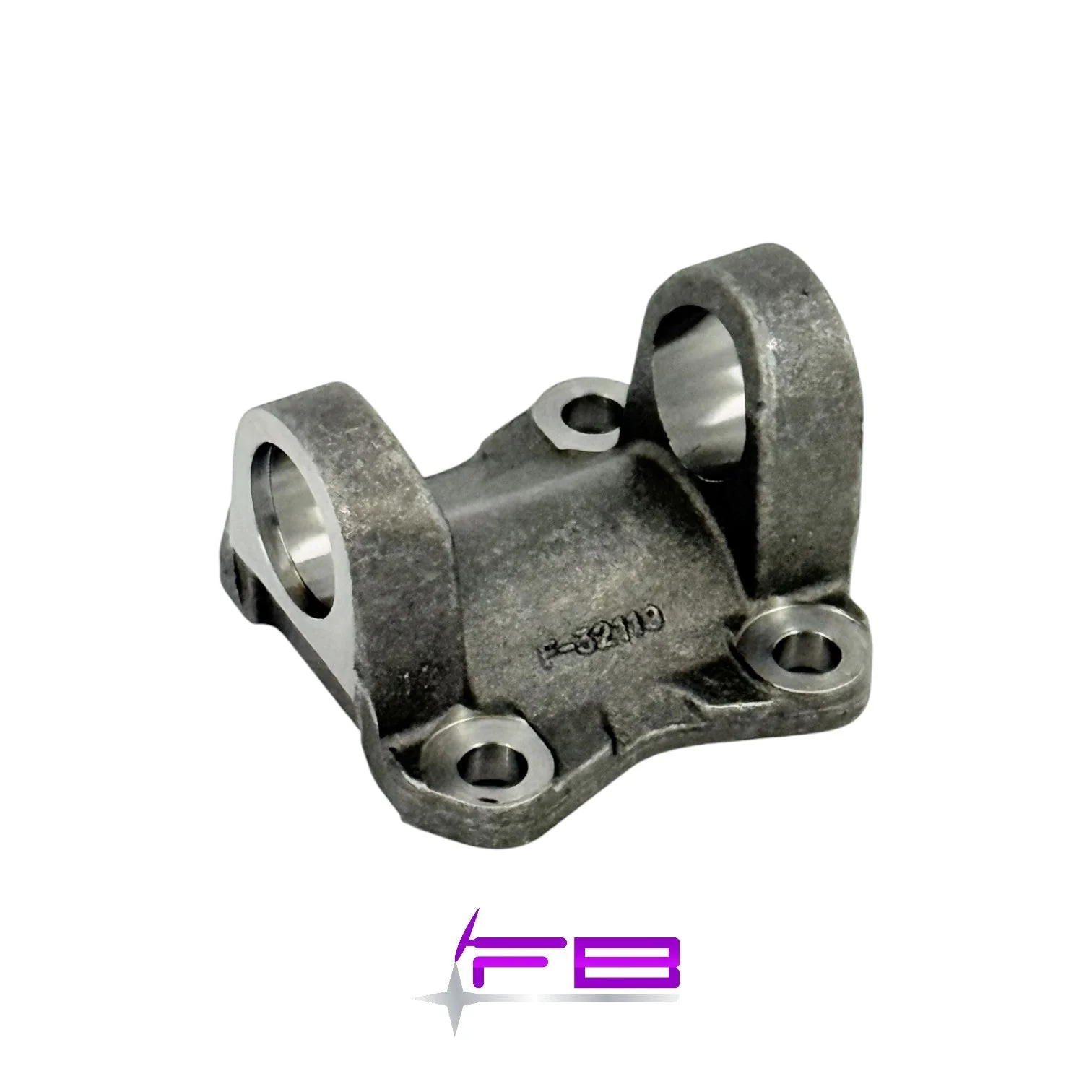

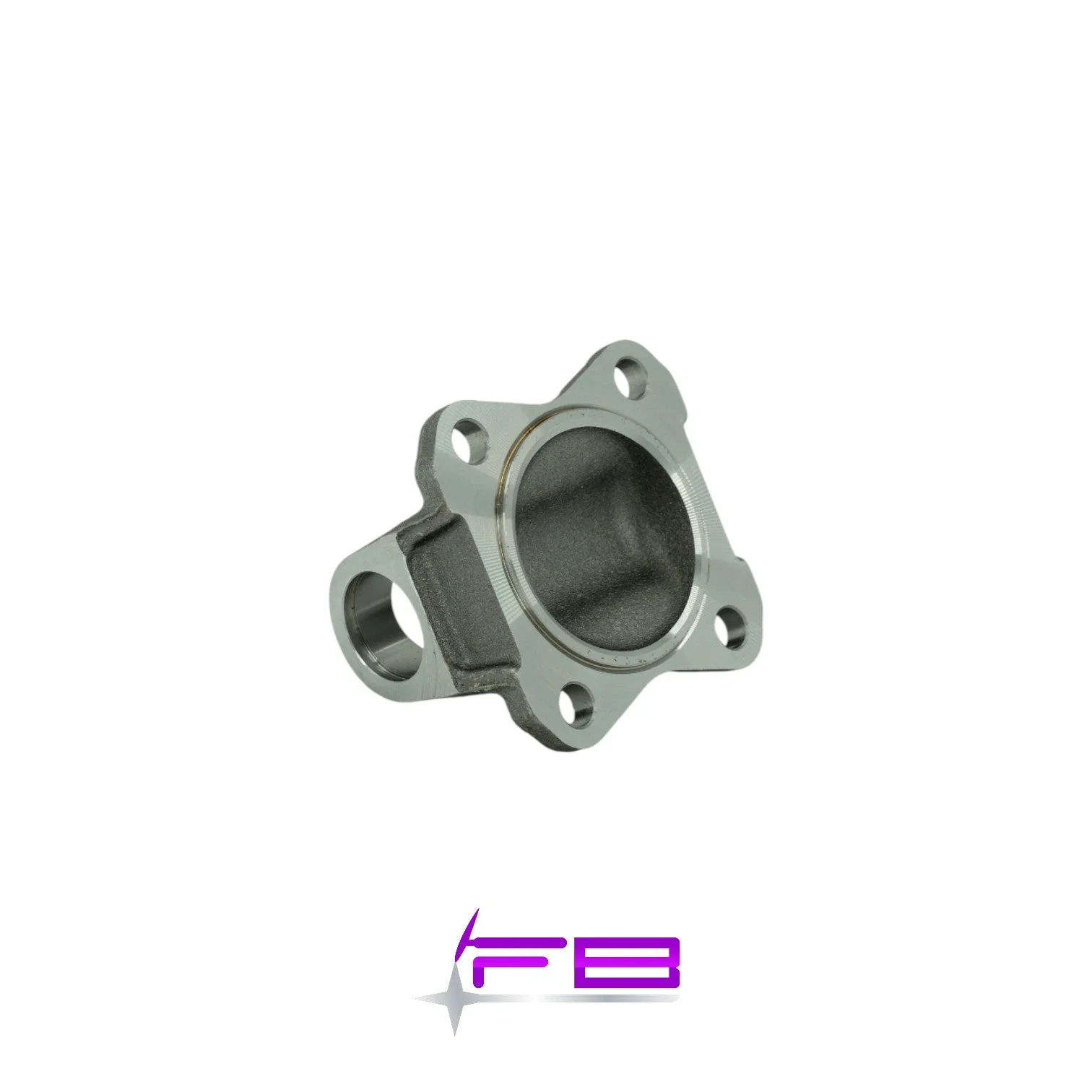

1350 Flange Yoke

1350 U Joint Flange Yoke for High Performance Driveline Conversions

The 1350 flange yoke is a high strength driveline component designed to connect flange style outputs to a 1350 series U joint driveshaft. Built for durability and high torque applications this yoke allows builders to run a strong reliable one piece driveshaft using widely available components.

Designed to integrate with FABbot output flange adapters this yoke is ideal for high horsepower builds drift cars and custom chassis projects.



---



Engineered for Strength Compatibility and Performance

• Designed for 1350 series U joint driveshafts
• Compatible with all FABbot output flange adapter systems
• Converts flange output to standard U joint driveshaft connection
• Built for high torque and aggressive driving conditions
• Based on proven industry standard dimensions



---



Technical Specifications

• U joint series 1350
• 4 bolt flange pattern
• Bolt circle 3.750 inch
• Bolt hole diameter 0.438 inch
• Pilot diameter 2.750 inch
• Flange diameter 4.625 inch
• U joint cap diameter 1.188 inch
• U joint width 3.625 inch
• Flange face to U joint centerline 1.562 inch



---



Fitment and Compatibility

• Compatible with transmission differential and transfer case flange outputs
• Designed for use with FABbot flange adapter systems
• Requires matching bolt pattern and pilot diameter



---



What You Will Need

• Matching 4 bolt flange output
• Driveshaft built with 1350 series U joints
• Driveshaft length matched to chassis



---



Built for Reliable Real World Performance

This flange yoke delivers a strong standardized driveline connection designed for high performance applications. It provides durability serviceability and compatibility across a wide range of swap and custom builds.
