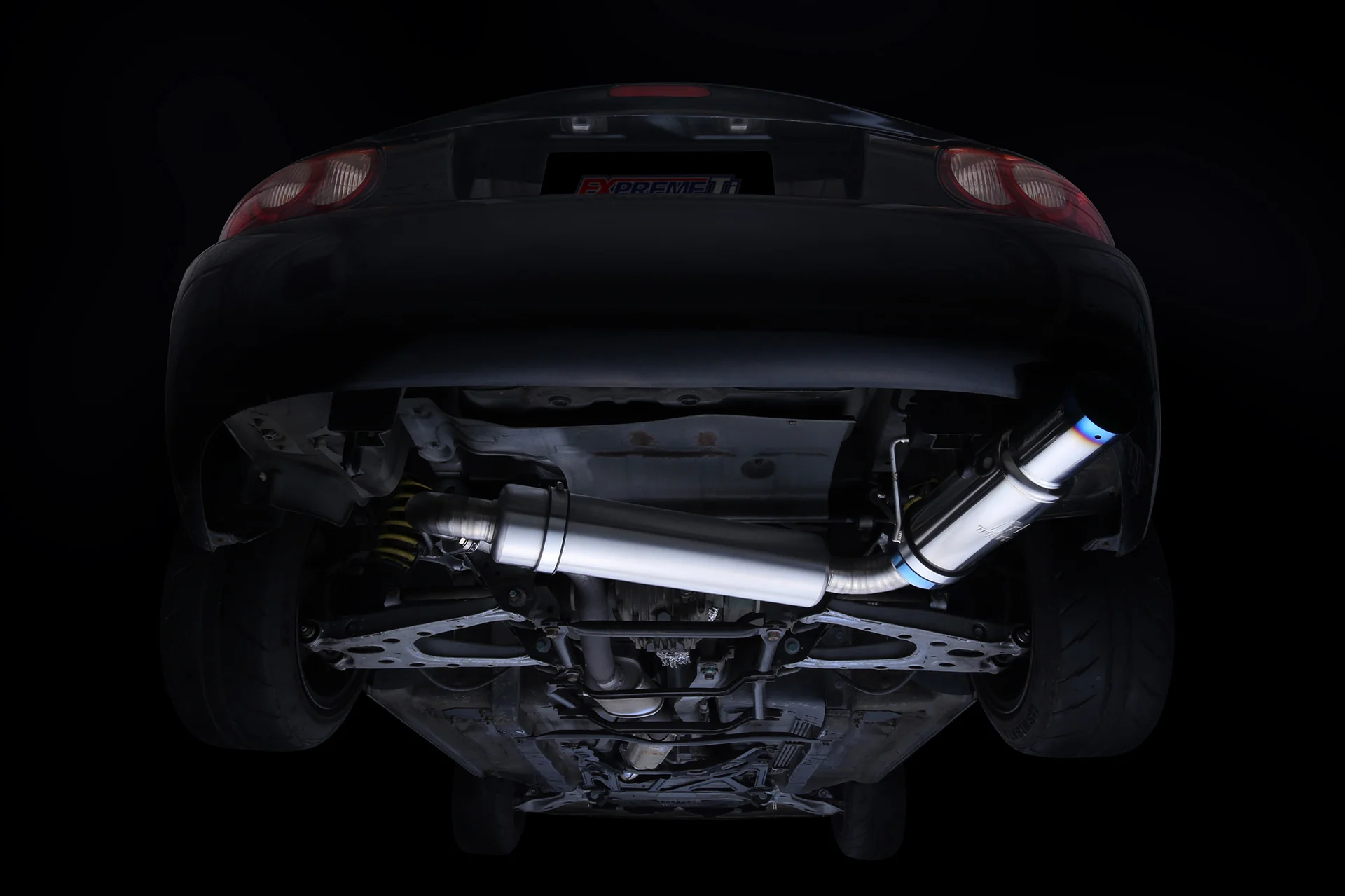

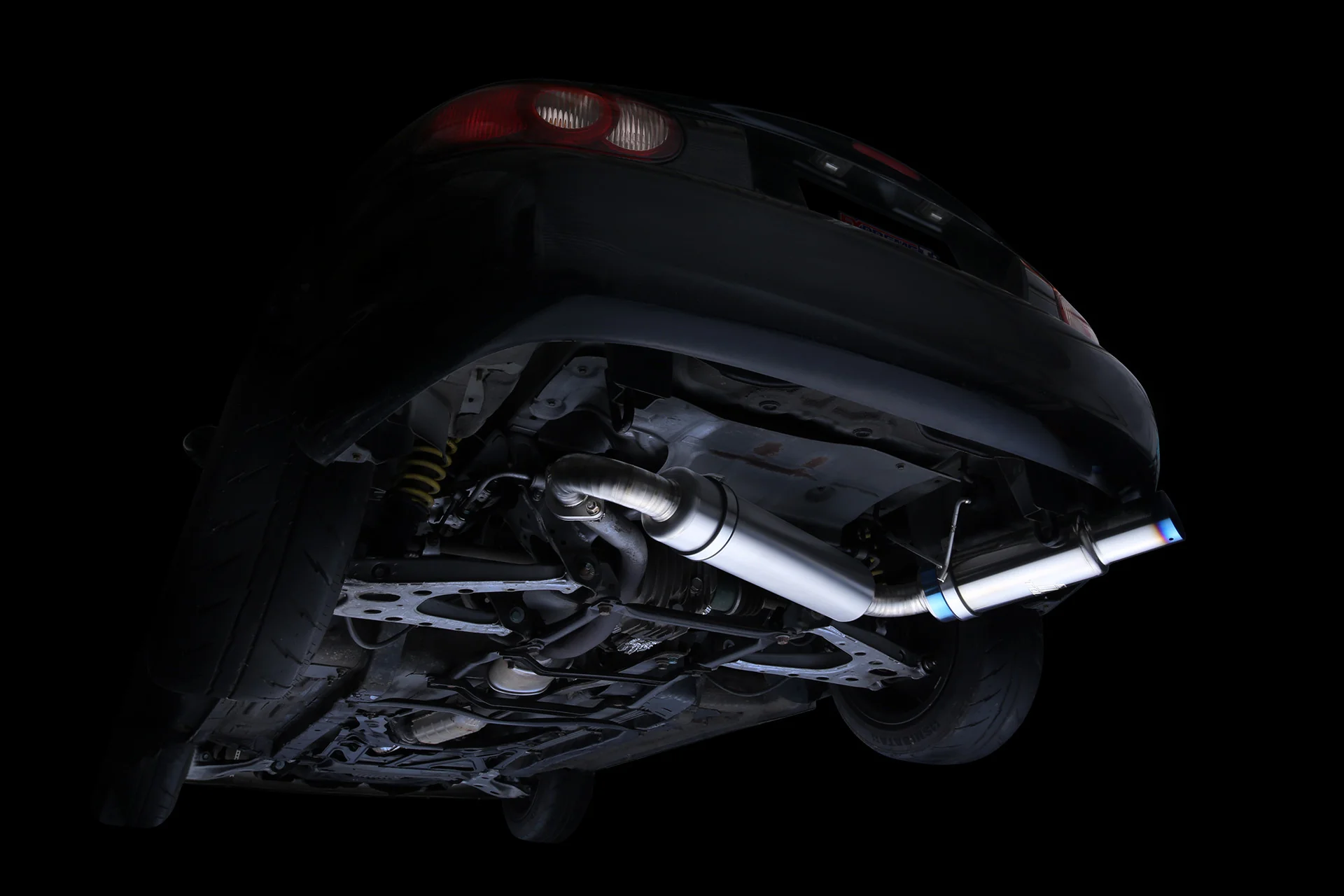

Tomei - FULL TITANIUM MUFFLER EXPREME TI NB MX-5 MIATA (TB6090-MZ02A)
MAZDA NB MIATA
SPECIFICATION
COMPARISON VS. OEM
FULL TITANIUM MUFFLER SPECIFICATION
| TOMEI | OEM | |
| PARTNo. | TB6090- MZ02A |
- |
| MATERIAL | TITANIUM | - |
| MAIN PIPE DIAMETER |
2.38inch (60.5mm) |
1.96inch (50.0mm) |
| MAIN PIPE THICKNESS |
1.0mm | - |
| SUB SILENCER DIAMETER |
4.64inch (118.0mm) |
- |
| SUB SILENCER THICKNESS |
1.0mm | - |
| SILENCER DIAMETER |
4.64inch (118.0mm) |
11.0x19.6x6.69inch (280x500x170mm) |
| SILENCER THICKNESS |
1.0mm | - |
| EXIT DIAMETER |
3.50inch (89.1mm) |
2.36inch (60.0mm) |
| EXIT THICKNESS |
1.0mm | - |
| FLANGE THICKNESS |
8.0mm | 8.0mm |
| WEIGHT | 19.2lbs (8.7kg) |
21.8lbs (9.9kg) |
EXHAUST NOISE TEST
Tested @ 5250rpm
Only Muffler installed
COMPLETE KIT
This kit includes all the components necessary for installation including the bolts and nuts. Bolt Smooth Paste is also included to help prevent the bolts becoming seized under heat.
