DMS 10-Rib Pulley Kit for Kong and Magnuson 2650 Superchargers

Maximize the performance and reliability of your Kong or Magnuson 2650 supercharger with the DMS 10-Rib Pulley Kit. Designed for high-horsepower applications, this kit eliminates belt slippage and ensures consistent boost levels, allowing you to push your 2650 to its limits.

Key Features and Benefits:

• Eliminates Belt Slippage: 10-rib design provides increased grip and prevents belt slippage, even under extreme boost conditions.
• Consistent Boost Levels: Ensures stable and predictable boost pressure for optimal performance.
• High-Quality Components: Includes ZPE Griptec pulleys, DMS idlers, and a Gates FleetRunner belt for superior durability and reliability.
• Optimized Blower Speeds: Achieve desired blower speeds with a choice of upper pulley sizes.
• Comprehensive Kit: Includes all necessary components for a complete 10-rib conversion.
• Relocation Bracket: Provides proper belt alignment and tension.

Blower Speed Calculations (at 7000 RPM Engine Speed):

• 2.85" Upper with 10.0" Lower: 24,561 Blower RPM
• 3.00" Upper with 10.0" Lower: 23,333 Blower RPM

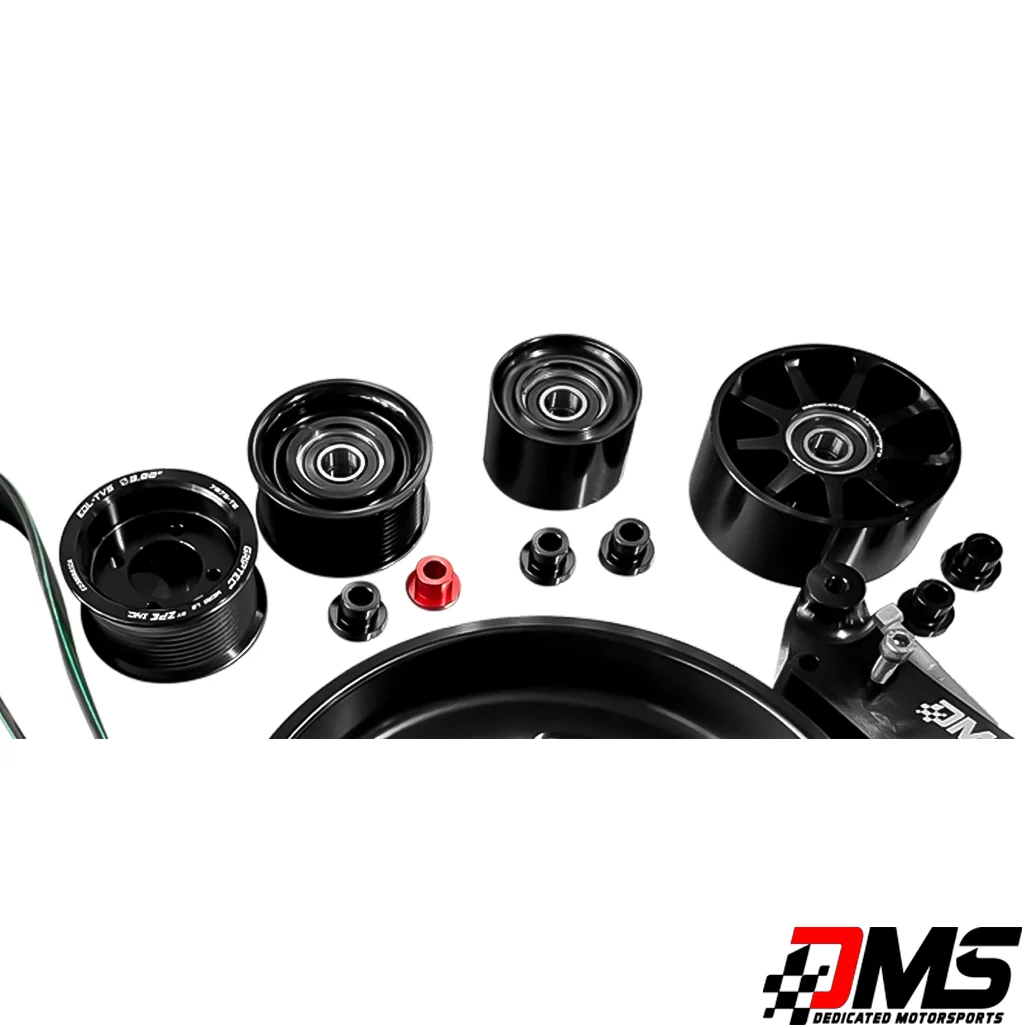

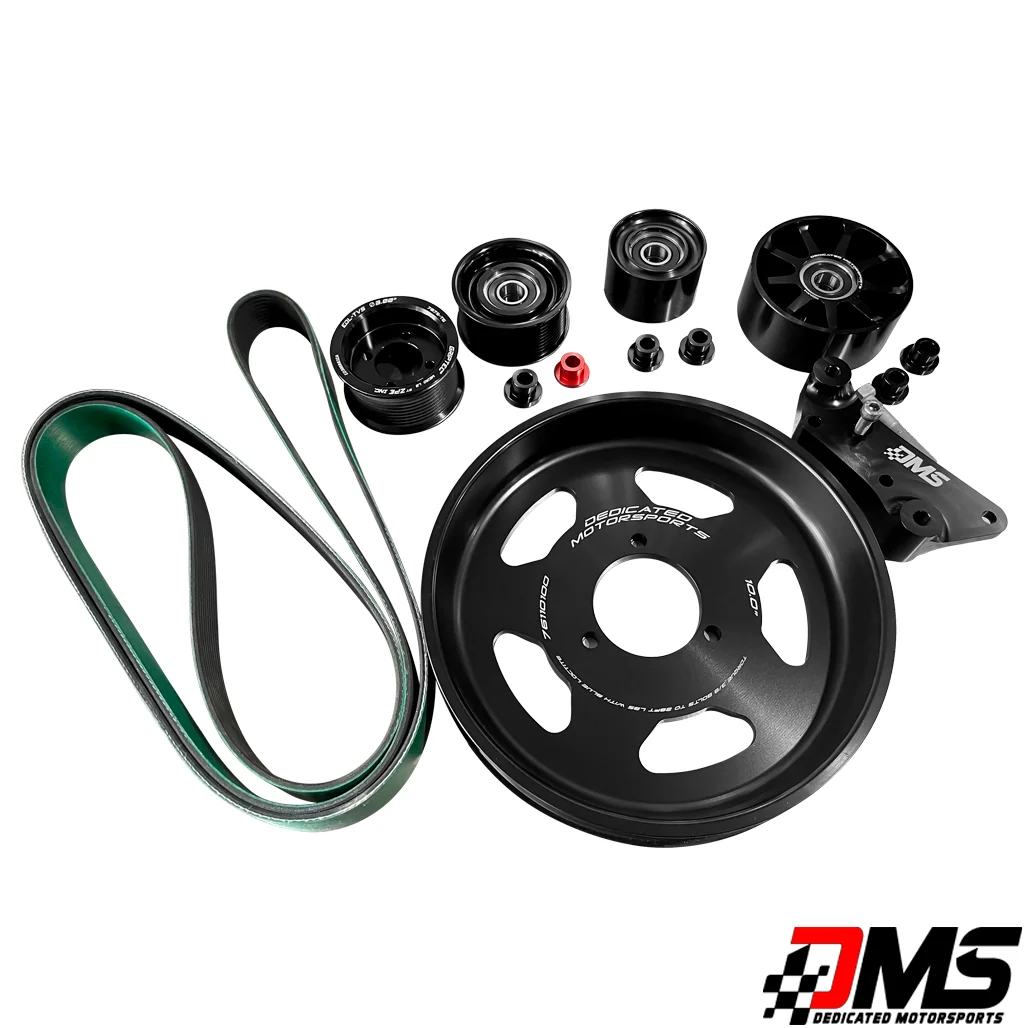

Kit Includes:

• ZPE Griptec 10-Rib Upper Pulley (2650)
• DMS 10-Rib Lower Pulley Ring (for ATI Balancer)
• DMS 100mm Upper Idler
• DMS 50mm or 70mm Lower Idler (specify size)
• DMS +5mm Relocation Bracket with 1/2-20 Upper Bolt
• DMS 10-Rib 70mm Ribbed Tensioner Pulley
• Gates FleetRunner Belt (proper size)

Optional:

• ATI Balancer (add in options box)

Installation:

Professional installation is highly recommended.
